Cylinder Holders

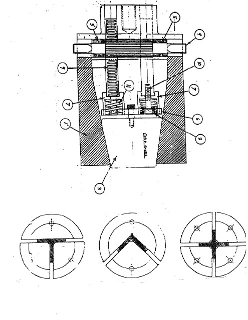

Griffin designed the cylinder holder for a manufacture of titanium products for the aerospace industry. The various product shapes required a system that could, literally, provide multiple grip forms to adjust to the products. The illustrations reflect only a few of the forms that the cylinder holders and product specific grips tested.

The cylinder holders are manufactured in both mechanical and hydraulic form and in 20,000, 30,000 and 50,000 lb. capacities.


Split Drum Systems Model 580

Our split drum systems are designed to meet or exceed all ASTM requirements and are manufactured to satisfy every customer's specific needs. By utilizing a full range of materials from composites to stainless to high temperature alloys we are able to provide you with the individualized fixturing you require at a cost that is competitive with other standard fixtures that are available. We have provided systems for high temperature, high humidity environments with 60,000 lb. capacity, systems for materials 2 to 24" in width, and systems with rubber, smooth metal, serrated, and Surfalloyed® faces. We supply fixtures with capacities ranging from 2000 lbs. to 120,000 lbs.

Bolt Holder Fasteners

Griffin Bolt holders fasteners are designed and manufactured to assure maximum safety margins and lasting service. We believe that there is not a better quality holder in the market. If strength, durability, and precision alignment are critical to your testing procedures, please evaluate these fixtures.
